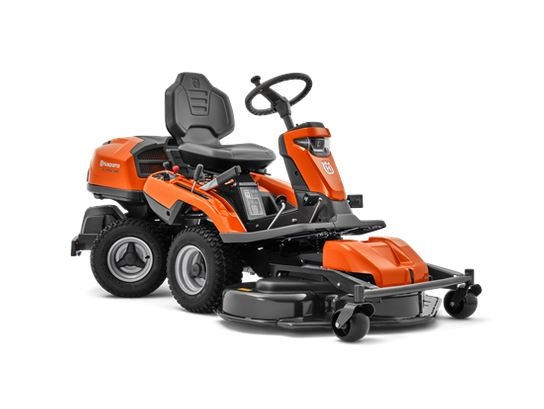

HUSQVARNA R 316TsX AWD Rider
R316TsX AWD
Power/fuel type
Cutting width, min
Cutting height min
A high-performance ride-on lawn mower built for the toughest jobs. Husqvarna R 316TsX AWD is superb for all-year use, with a great variety of accessories and combi cutting decks available. Power-assisted articulated steering and All-Wheel-Drive provide great control and traction in challenging terrain. The engine hood covering the V-Twin engine features integrated rails for attaching accessories like cargo holder. LED lights are fitted front and back. Ready for Husqvarna Connect with Bluetooth®
Features
Adjustable steering wheel
For greater ergonomics and comfort a telescopic steering column lets the steering wheel height to be adjusted..
HMI Display
Attachment frame
Easy to shift between cutting decks and front-mounted attachments, such as broom, flail mower, snow blade and snow thrower.
Optional Combi cutting deck
This Rider is delivered deckless and can be fitted with 103 or 112 cm Combi cutting decks for efficient BioClip® and rear ejection cutting
Power-assisted steering
Power-assisted steering makes driving less strenuous and more enjoyable.
Comfortable driver's position
With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low gravity centre contributes to extra good traction as well as a comfortable 'sit-in' feeling for the user.
Dual LED lights for improved visibility, both near and remote.
Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.
Front-mounted cutting deck
Front-mounted cutting deck for excellent accessability into corners and under bushes, park benches etc
Unique articulated steering
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
All-Wheel-Drive (AWD)
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Service position
Service position on the cutting deck facilitates cleaning and service.
Husqvarna Connect
With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play
Specifications
| Engine |
R316TsXAWD RIDER
Art no: 970 54 29‑01
|
| Power/fuel type | Gasoline |
|---|---|
| Net power at preset rpm Energy | 9.7 kW |
| Motor/engine manufacturer | Kawasaki |
| Engine name | FS481V |
| Cylinder displacement | 603 cm³ |
| Cylinders | 2 |
| Engine cooling | Air |
| Engine lubrication type | Full pressure |
| Oil filter | Yes |
| Emission | |
|
Exhaust emissions (CO2 EU V)
|
851 g/kWh |
| Battery | |
| Battery capacity | 24 Ah |
| Battery type | Lead-Acid |
| Battery pack weight | 7 kg |
| Battery manufacturer | Global |
| Cutting deck | |
| Uncut circle | 30 cm |
| Cutting width, min | 94 cm |
| Cutting width, max | 112 cm |
| Cutting height min | 25 mm |
| Cutting height max | 75 mm |
| Blade engagement | Automatic |
| Dimensions | |
| Tyre dimensions, front | 170/60-8 |
| Tyre dimensions, rear | 170/60-8 |
| Wheelbase | 88.7 cm |
| Ground clearance | 90 mm |
| Base machine, length | 200.8 cm |
| Base machine, width | 88.7 cm |
| Base machine, height | 118.1 cm |
|
Gross weight towed
|
125 kg |
| Weight (excl. cutting equipment) | 251 kg |
| Drive system | |
| PTO (Power Take Off) | Belt-driven |
| Transmission type | Hydrostatic |
| Drive method | Dual pedal-operation |
| Speed forward max | 9 km/h |
| Speed reverse max | 5 mph |
| Speed reverse max | 8 km/h |
| Equipment | |
| Seat suspension | Yes |
| Hour meter type | Digital with pre-programmed service intervals |
| Seat material | Vinyl |
| Seat back height | High |
| Foldable seat | Yes |
| Steering wheel type | Comfort |
| Parking brake, type | Disc |
| Vibration | |
| Vibration level steering wheel | 2.5 m/s² |
| Vibration level seat | 0.7 m/s² |
| Sound and Noise | |
| Sound pressure level at operators ear | 84 dB(A) |
| Sound power level, guaranteed (LWA) | 99 dB(A) |
| Sound power level, measured | 98 dB(A) |
