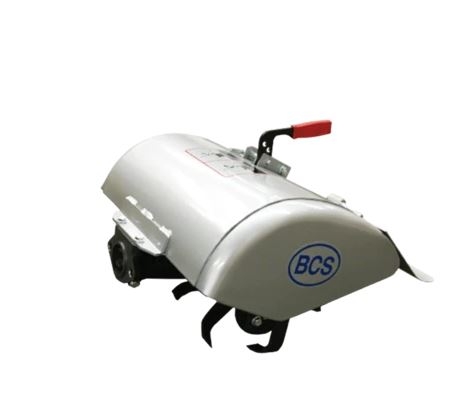

TRACMASTER Rotavator BCS Implement

Rotavator

The Rotavator is a fantastic tool which combines a proven blade design with a high rotor speed to produce a fine tilth in even the most demanding conditions.

A high rotor speed and a proven blade design will produce a fine seed bed finish and prepare perfect ground for growing.

The digging speed can be controlled via the throttle for varying ground conditions, use a slower speed for breaking up the earth and then a faster speed to produce a finer tilth. The digging depth is easily adjusted via the lever on top of the box.

The stability of the machine combined with large wheels, ensures that there is little or no downward pressure on the handlebars required.

The centre knife breaks up the middle ground ensuring the entire width is rotavated and the heavy-duty J-shaped blades help to prevent formation of a hard pan.

For safety, the rotavator will not operate (spin) whilst the machine is in reverse.

An optional transport wheel is available - slots into the back of the rotavator to make moving the machine around site easier.



Rotavator
Digging Width 46cm (18") 52cm (20") 66cm (26") 80cm (32") 85cm (34")
Digging Depth 20cm (8") 23cm (9")
Transmission Gears
PTO RPM 990 825/990
PTO Rotation Clockwise
Max working speed 2.9 km/hr
No of Tines 12 16 20 24 20
Dimensions (L W H) 55 x 46 x 38cm 60 x 52 x 42cm 63 x 66 x 42cm 63 x 80 x 42cm 71 x 85 x 50cm 78 x 85 x 53cm
Weight 26kg 35kg 40kg 43kg 66kg 80kg

Which power units will the rotavator fit to?

  46cm (18") 52cm (20") 66cm (26") 80cm (32") 85cm (34")
 BCS 710 ✓ ✓
 BCS 728 ✓ ✓
BCS 738   ✓ ✓
BCS 740     ✓ ✓
 BCS 750     ✓ ✓ ✓
 BCS 770HY     ✓ ✓
BCS 614

BCS 615

BCS 618

BCS 630
BCS 630WS
BCS 660HY

Are any couplers or toolbars needed?

If the power unit has the Implement Quick Coupling fitted then you will need an Additional Coupler

Please note: The BCS 750 power unit has its own specific coupler.

The rotavator transport wheel can be useful for moving the machine from storage to working area.
