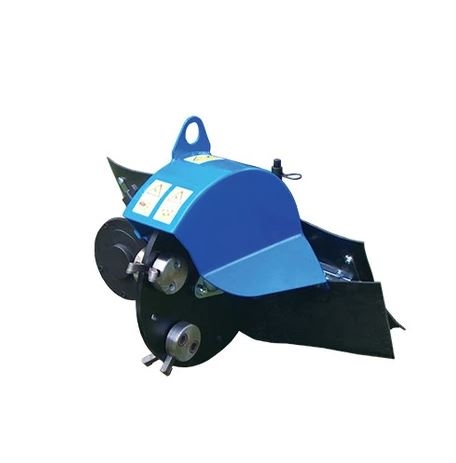

TRACMASTER PTO Stump Grinder BCS Implement
stump grinder
The Stump Grinder attachment makes your two wheel tractor even more versatile. With this implement you can grind stumps of any diameter up to 23cm above ground and down to 23cm below ground.
This extremely tough stump grinder, manufactured by Caravaggi s.r.l., features a cast-iron gearbox with fully hardened gears and shafts supported by ball bearings in a full oil bath.
The ½" wide steel grinding disc measures 14" in diameter and is fitted with 8 heavy-duty replaceable carbide cutting teeth.
Locking one of the power unit's wheel brakes effectively enables the stump grinder to pivot from side to side over the stump.
For easy manoeuvrability the stump grinder is fitted with a removable transport wheel.
| PTO Stump Grinder | |
| Grinding Disc Diameter | 35½cm (14") |
| Grinding Disc Thickness | 1¼cm (½") |
| No of Teeth | 8 |
| Grinding Above Ground | 23cm (9") |
| Grinding Below Ground | 23cm (9") |
| Dimensions (L W H) | 88 x 73 x 55cm |
| Weight | 100kg |
Which power units will the stump grinder fit to?
| BCS 710 | |
| BCS 728 | |
| BCS 738 | |
| BCS 740 | ✓ |
| BCS 750 | ✓ |
| BCS 770HY |
✓ |
| BCS 614 |
|
| BCS 615 |
|
| BCS 618 |
✓* |
| BCS 630 | ✓ |
| BCS 630WS |
|
| BCS 660HY |
*GX200 engine only.
Are any couplers or toolbars needed?
If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.
Please note: The BCS 750 power unit has its own specific coupler.
