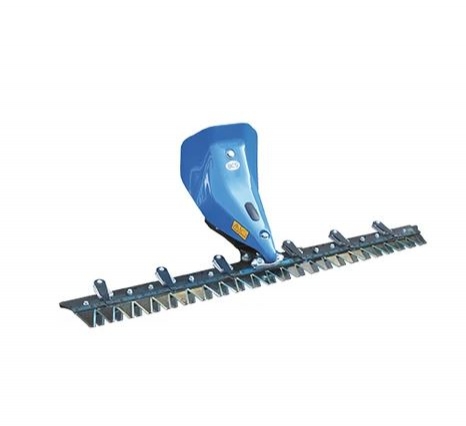

TRACMASTER Duplex Laser® Scythe Cutter Bar

Duplex Laser Scythe Cutter Bar

The duplex Laser® scythe will quickly cut vegetation of any height or density up to 2½cm (1”) thick and is ideal for managing large areas of wildflower meadows and grasses for haymaking.

The anti-clog serrated blades will cut through vegetation up to 1" diameter, including brambles and even first year saplings.

This scythe cutter bar combines all the advantages of both cutter bars. The Laser® duplex scythe excels at cutting all types of overgrown vegetation, it also has low vibration, and a faster cutting speed. This lower vibration enables the operator to use the machine for longer periods and so, coupled with the faster cutting speed, this means that the Laser® duplex scythe is a fantastic solution for those needing to cut large areas quickly and efficiently.

The scythe makes a single scissor-like cut at the base of the vegetation, leaving the material whole. This is what makes the scythe the best tool for cutting long grass for haymaking and for cutting wildflowers.

Because the cutter bar is located out at the front of the machine it can get into areas that other mowers can't, such as under fences, round the base of trees, at the edge of water, and so on.

They are also very economical to run as the power unit should never be on more than one-quarter throttle so fuel consumption is very low.



Duplex Laser® Scythe Cutter Bar

Cutting Width 130cm (51")
Cutting Height 2cm (¾") to 8cm (3¼")
No of Blades 15
Drive Movement Oil bath
Recommended Working Speed 1.0 to 4.0 km/hr
PTO Rotation Clockwise
RPM PTO Unit 825 / 990
Dimensions (L W H) 54 x 120 x 43cm
Weight 50kg

Which power units will the duplex Laser® scythe cutter bar fit to?

BCS 710
BCS 728
BCS 738 ✔
BCS 740 ✔
BCS 750 ✔
BCS 770HY
 ✔
BCS 614

BCS 615

BCS 618
 ✔*
BCS 630 ✔
BCS 630WS
 ✔
 BCS 660HY
 ✔

 * GX200 engine only.


Are any couplers or toolbars needed?

If the power unit has the Implement Quick Coupling fitted then an Additional Coupler will be required.

Please note: The BCS 660HY and 750 power units have their own. specific coupler
