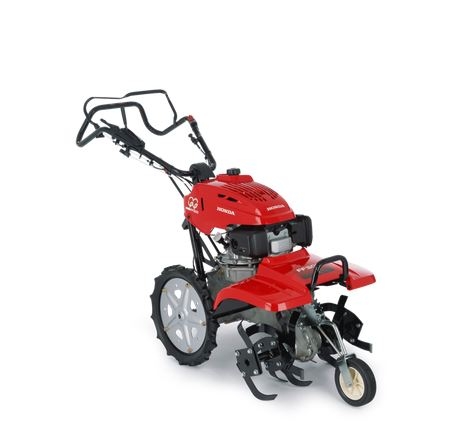

HONDA FF 500 Rotary Tiller

FF 500

A mid-sized, robust tiller with counter-rotating tines, gearbox, and one optional attachment.

Features

• Security loop handle
• Counter-rotating tines
• Gear box

Specifications

• Function

  Max tilling width (mm)	550
  Max tilling depth (mm)	330
  Forward speeds	3
  Reverse speeds	1
  Forward tool rotation speed (rpm)	0.2 - 1 m/s
  Reverse tool rotation speed (rpm)	0.3 m/s
  PTO rotation speed (low/high) (rpm)	141

• Dimensions

  Dimension (L x W x H) (mm)	1,730 x 585 x 1,040
  Dry weight (kg)	76

• ACC

  Rotors/tines supplied	Front counter rotation digging tines
  Counter rotating tines	Yes
  Wheels	Wheels & Tyres
  Ridger	Optional

• Engine

  Engine	4-stroke OHC
  Engine model	GCV160
  Engine displacement (cc)	145
  Engine net power (kW/rpm)	3.1/3.600
  Fuel tank capacity (Litres)	0.91
  Engine oil capacity (Litres)	0.4
  Starter	Recoil
  Drive clutch	Manual - expanding shoe
  Transmission	Constant mesh
  Final transmission	Wheels - constant mesh/Tines - chain & gear
  Differential / side clutch	Yes
  Sound pressure at operators ears (dB(A))	79
  Guaranteed sound power level (dB(A))	90
  Vibration (m/sec²)	2.3

• Handle

  Height adjustable handle

  Yes
