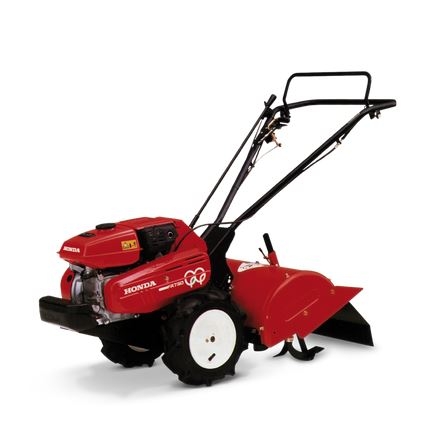

HONDA FR 750 Rotary Tiller

FR 750

A larger, robust tiller with counter-rotating tines and gearbox.

Features

• Counter-rotating tines
• Gear box

Specifications

• Function

  Max tilling width (mm)	510
  Max tilling depth (mm)	326
  Forward speeds	2
  Reverse speeds	1
  Forward tool rotation speed (rpm)	0.35 - 1.22 m/s
  Reverse tool rotation speed (rpm)	0.3 m/s
  PTO rotation speed (low/high) (rpm)	238

• Dimensions

  Dimension (L x W x H) (mm)	1,500 x 570 x 1,140
  Dry weight (kg)	97

• ACC

  Rotors/tines supplied	Rear rotary tines
  Counter rotating tines	Yes
  Wheels	Wheels & Tyres

• Engine

  Engine	4-stroke OHC
  Engine model	GX200
  Engine displacement (cc)	196
  Engine net power (kW/rpm)	4.1/3,600
  Fuel tank capacity (Litres)	2.5
  Engine oil capacity (Litres)	0.6
  Starter	Recoil
  Drive clutch	Manual - expanding shoe
  Transmission	Variable sliding
  Final transmission	Cobstant mesh with differential
  Differential / side clutch	Yes
  Sound pressure at operators ears (dB(A))	79
  Vibration (m/sec²)	3.5

• Handle

  Height adjustable handle

  Yes
