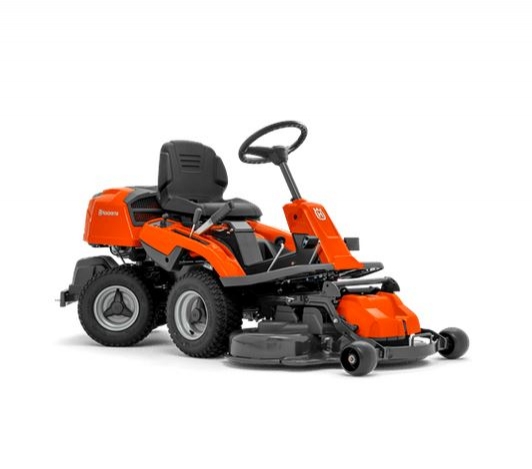

HUSQVARNA R 214C Rider

R 214C





Efficient Rider with 94 cm Combi cutting deck, offering first-class BioClip® and rear ejection cutting. Suitable for home- and landowners who require high efficiency, ease of use, superior manoeuvrability and a truly enjoyable ride. The articulated steering system and front-mounted cutting deck means intuitive operation, excellent mowing accessibility and great overview of your working area. Pedal-operated hydrostatic transmission, easy-access controls and automatic blade engagement, makes mowing a pleasure. The cutting deck is easily tilted up into service position for easy cleaning after mowing. This Rider can do so much more than cutting your lawn. Thanks to attachments such as snow blade, trailer, moss rake and spreader, it can maintain your garden all year round.

Features:



Combi cutting deck with BioClip® (mulching)

BioClip® (mulching) provides perhaps the best cutting result on the market on frequently cut areas. The grass is cut into fine pieces that quickly turn into fertiliser.

Turn key start

Easy to get operating under any wetather conditions. No choking needed, just turn the key and go.

Service position

Service position on the cutting deck facilitates cleaning and service.

Automatic blade engagement

The blades are engaged automatically, when you lower the cutting deck.

Pedal-operated hydrostatic transmission

Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Adjustable steering wheel

For greater ergonomics and comfort a telescopic steering column lets the steering wheel height to be adjusted.

Storage compartment

The open left-hand storage is easy to access while mowing.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Hour meter

Helps you having control over service and maintenance intervals.

Bottle holder

Convenient bottle holder for refreshments.

Unique articulated steering

The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.

Combi cutting deck

The Combi cutting deck offers the versatility of two different cutting systems. Choose between BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.

Easy-access controls

Controls are easy accessible and designed for optimum user comfort.

Engine behind driver

Thanks to the rear-mounted engine, you get better overview of the mowing and less noise and emissions in the driver’s area.

Four large wheels

16-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessability into corners and under bushes, park benches etc.

Versatile usage

A wide range of cutting decks and accessories makes our Riders exceptionally versatile, all year round.

Specification

Engine	R 214C Art no: 970 51 94‑01
Power/fuel type	Gasoline
Net power at preset rpm Energy	8.4 kW
Motor/engine manufacturer	Husqvarna
Engine name	HS 413AE
Cylinder displacement	413 cm³
Cylinders	1
Engine cooling	Air
Engine lubrication type	Pressure
Oil filter	Yes
Emission
Exhaust emissions (CO2 EU V)	773 g/kWh
Battery
Battery capacity	24 Ah
Battery type	Lead-Acid
Battery pack weight	7.2 kg
Battery manufacturer	Global
Cutting deck
Uncut circle	30 cm
Cutting width, min	94 cm
Cutting width, max	94 cm
Cutting height min	25 mm
Cutting height max	75 mm
Blade engagement	Automatic
Dimensions
Tyre dimensions, front	170/60-8
Tyre dimensions, rear	170/60-8
Wheelbase	88.7 cm
Ground clearance	120 mm
Base machine, length	192.2 cm
Base machine, width	88.3 cm
Base machine, height	107 cm
Gross weight towed	110 kg
Weight (excl. cutting equipment)	191 kg
Drive system
Transmission type	Hydrostatic
Drive method	Dual pedal-operation
Speed forward max	9 km/h
Speed reverse max	3.7 mph
Speed reverse max	9 km/h
Equipment
Seat suspension	Yes
Hour meter type	Digital
Seat material	PU
Seat back height	Medium
Foldable seat	Yes
Steering wheel type	Comfort
Parking brake, type	Disc
Vibration
Vibration level steering wheel	2.1 m/s²
Vibration level seat	0.6 m/s²
Sound and Noise
Sound pressure level at operators ear	84 dB(A)
Sound power level, guaranteed (LWA)	99 dB(A)
Sound power level, measured	98 dB(A)
