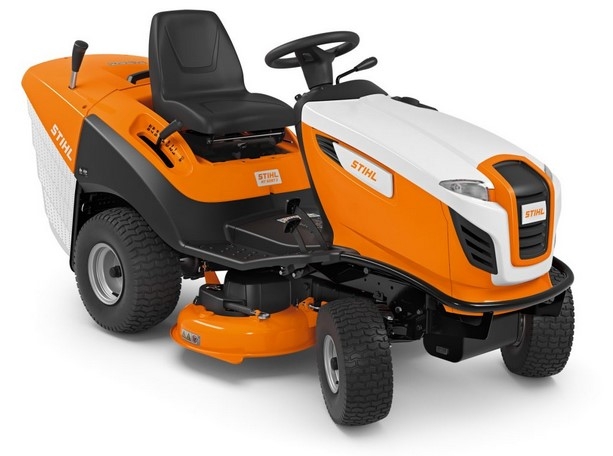

STIHL RT 5097 Z Petrol Ride-on Lawn Mower
High performance with twin cylinder engine
RT 5097 Z
- Powerful ride-on mower with 2-cylinder engine
- For domestic users and landscape gardeners
- Single-pedal drive for swift manoeuvring
- Straightforward cut-height adjustment and blade clutch
- Adjustable operator’s seat for a comfortable ride
- 250-litre plastic grass collection box with sabre-type handle
The STIHL RT 5097 Z ride-on mower shows that comfort and performance are not just reserved for deluxe models. Enjoy the sprung loaded seat which is adjustable to all heights and master the controls which are close at hand: the forward/reverse drive lever at the steering wheel, the central cutting height adjustment, the blade clutch and the lever for effortless emptying of the grass catcher box.
The RT 5097 Z features a very powerful twin cylinder STIHL EVC 700 engine for top level performance. In addition the single-pedal operation and direct steering provide a previously unattained level of comfort during driving, manoeuvring and mowing. The Grass Guide System on both sides of the mowing deck catches grass blades at the edge of the deck and guides them towards the cutting blades. The 2 blade system with angled blades provides a neat and clean cutting pattern over a width of 95 cm.
Features
Electromagnetic blade clutch
FOR BLADE PROTECTION. The electromagnetic blade clutch enables you to conveniently switch the blades of your ride-on mower on and off from the driver’s seat. This means you can react flexibly, for example by raising the cutting deck when driving over rocky surfaces, to protect the blades. When driving back onto the lawn to be mowed, move the cutting deck down again, and switch the blades back on at the push of a button.
Turf tryes
PROTECT THE LAWN SURFACE. Turf tyres reduce the chance of tracks being left by the ride-on mower thanks to their rounded tyre shoulders. This allows you to treat your lawn more gently.
Central cut-height adjustment
The lever to adjust the deck cutting height is located directly next to the driver's seat. It enables individual adjustment of the cutting height in up to eight steps.
Robust frame
The robust frame construction gives the mower a high level of stability and driving comfort. The STIHL ride-on mowers compact design is great for using attachments such as the AGW 098 garden roller or PICK 300 tilting trailer.
Spring-loaded and adjustable seat
The most comfortable seat position can be set without the use of tools. This allows individual adjustment of the driver's seat to almost any body size.
Low step
The low step on the STIHL ride-on mowers provides ample legroom and allows for comfortable access to the seat.
Catching management system
The catching system guides the grass blades across the entire working width of the mowing deck. It helps to guide the grass towards the mowing blades for a more efficient cut.
Grass collection box with sabre handle
The polymer grass catcher box can be emptied effortlessly from the driver’s seat simply using the curved shaped handle. The "dumper" design ensures optimum filling and residual-free emptying of the grass catcher box. Cleaning the catcher box is also easy.
Single pedal drive
With the STIHL single pedal drive, the direction of travel can be conveniently switched between forward and reverse gear using a hand lever for quick manoeuvring. The pressure-sensitive pedal allows for precise control of the speed between top speed and standstill. The separate brake pedal ensures immediate stopping.
Technical details
| Displacement | 635 cm³ |
| Rated power | 12.2 kW / 16.6 hp |
| CO2 | 850 g/kWh |
| Gear type | Hydrostatic |
| Motor type | EVC 7000.0 |
| Device weight without refuelling | 237 kg |
| Cutting width | 95 cm |
| Cutting height | 30 - 100 mm |
| Tank capacity | 9 l |
| Rated speed | 2700 r/min |
| Turning radius | 0.8 m |
| Grass catcher box volume | 250 l |
| Device length without grass catcher box | 206 |
| Device length with grass catcher box | 242 cm |
| Device width with mowing unit | 101 cm |
| Device height to seat | 116 cm |
| Sound power level, guaranteed LWA | 100 dB(A) |
| Measured sound pressure level LpA | 86 dB(A) |
| Uncertainty factor, sound pressure level KpA | 2 dB(A) 1) |
| Vibration level at seat | 0.98 m/s² |
| Uncertainty, vibration on seat | 0.49 m/s² 1) |
| Vibration level at steering wheel | 2.2 m/s² |
| Uncertainty, vibration on steering wheel | 1.10 m/s² 1) |
