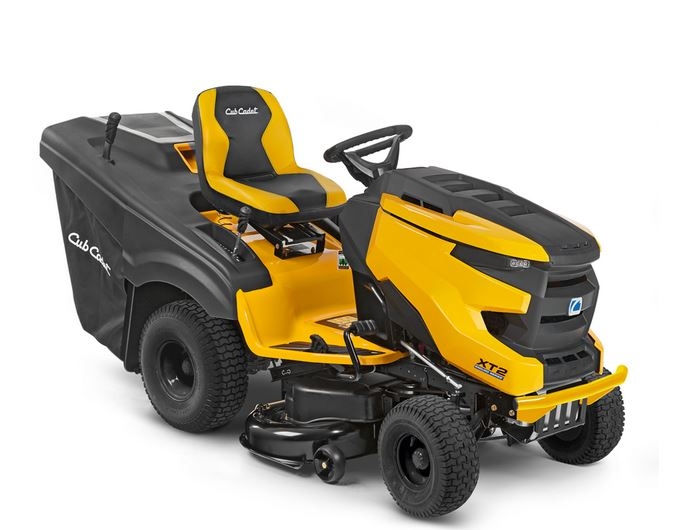

CUB CADET XT2 PR95 Lawn Tractor
XT2 PR95
- Cutting width : 95cm (38'')
- Transmission : Hydrostatic
- Rated power kW/min -1 : 9,3 / 2,15
- Mowing area in m 2 /h: 6.000
- Grass bag capacity (l) : 320
EAN: 4008423872279
MODEL NO : 13CGA1CB603
XT2 PR95 95cm / 38
The Cub Cadet XT2 PR95 is a versatile and extremely agile rear collection lawn tractor with the tightest turning circle on the market. The Cub Cadet lawn tractors with Tight Turn xTreme have a turning radius of just 17cm, delivering unsurpassed manoeuvrability and capability in tight places. A robotically-welded steel frame with e-coating corrosion defence system ensures longevity and with a heavy-duty cast-iron front axle, the XT2 PR95 is built to last. The powerful and reliable V-Twin Kawasaki engine features a push button start and the hydrostatic drive system operated by foot pedal control provides a smooth and comfortable ride. The 95cm / 38” cutting deck width enables up to 6,000 m² to be cut per hour and grass clippings can be emptied easily from the operator seat using the telescopic handle on the large 320 litre grass bag.
Specification
| |
| ENGINE |
XT2 PR95 |
|
| Engine |
Kawasaki |
| Engine displacement (cm3) |
603 |
| Rated power (kW/min-1) |
9,3 / 2,15 |
| Cylinders |
V-TWIN dual cylinder |
| Fuel tank capacity(l) |
11,4 |
|
| DRIVE SYSTEM |
|
|
| Transmission |
Hydrostatic |
| Air speed (max) |
Infinitely variable (f/r) |
| Control |
Foot pedal control |
| Cruise Control |
Standard |
|
| CUTTING SYSTEM |
|
|
| Mowing area (m2/h) |
6.000 |
| Cutting width |
95cm (38'') |
| Cutting height |
25-100 mm |
| Number of blades |
2 |
| Deck Engagement |
Electric PTO |
| Deck height positions |
12 positions |
| Deck wheels |
4 balls deck wheels |
| Wash nozzle / mulching plug |
Standard/(196-551-000) |
|
| DISCHARGE SYSTEM |
|
|
| Grass bag capacity (l) / accessory no. |
320/(196-555-603 Anti-Dust-System) |
| Bag lever / hardtop |
Rounded ergo telescopic handle / Plastic |
| Bag full indicator / Grass Deflector |
Deluxe w Blade Shutoff / (196-552-A000) |
|
| FRAME |
|
|
| Front axle |
Heavy-duty cast-iron |
| Front bumper |
Loop |
| Turning radius (cm) |
TIGHT TURN xTREME 17cm |
| Wheels (front/rear) (Zoll) |
15 x 6 Turf Saver / 18 x 8.5 |
| Wheel bearings |
Sleeve bearings |
| Frame |
Fully robotically-welded frame |
|
| ELECTRIC |
|
|
| Headlights |
LED |
|
| COMFORT |
|
|
| Seat type |
High Back Seat Cub Cadet |
| Seat adjustment |
Lever, angled,10 slide |
| Steering wheel |
Ergo Soft-Grip |
| Tool box / Cub holder |
Standard / Standard |
| 12V Plug |
|
| Mow in reverse |
Standard |
| Battery charger |
– |
|
| DIMENSIONS |
|
|
| Noise values (dB) |
88 / 98 / 100 |
| Vibration value body (K-factor) (m/s2) |
1 / 0,5 |
| Vibration value hand-arm (K-factor) (m/s2) |
5 / 1,5 |
| Dimensions (L / W / H) (cm) |
250 / 100 / 118 |
| Weight net (kg) |
254 |
|
|
|
|
