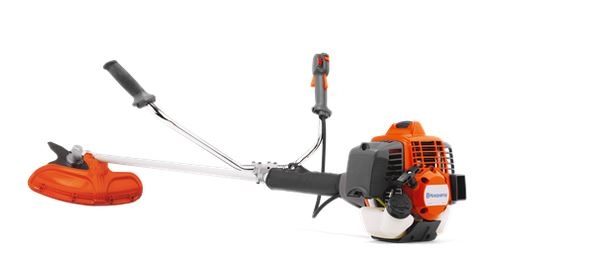

HUSQVARNA 543RS Brushcutter

543RS



46 cm
Cutting width
1.39 kW
Output shaft power1
7.4 kg
Weight (excl. cutting equipment)



Powerful and versatile brushcutter for frequent trimming

Powerful, versatile machine for frequent trimming of thick grass and weed. 543RS is a bargain for landowners who want a robust, reliable and easy to use brushcutter. Equipped with a strong, fuel-efficient X-Torq engine and an efficient air filter that provides less engine wear and service. Trimmer head, grass blade and combi-guard are included.



Features

X-Torq® engine

The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.

Standard double harness

Standard harness for lighter brushcutters.

Quick Start with Air Purge

Air purge removes air from carburetor and fuel system for easy starting

High Line Capacity

Tap 'n' Go trimmer head is easy to use and refill

Combi-guard

The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.

Bevel gear design

Proven and reliable gear design.

Robust handle system

The handle bar is attached to the tube by a die casted clamp for high durability.

Heavy duty clutch

The heavy duty clutch facilitates tough work using long cords and large diameter cutting knife

Stand alone starter

The stand alone starter makes it easy to change starter cord if needed.

Efficient air filter

The efficient air filter provide less cost for service and less engine wear

Grass bevel gear

Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.

Ergonomic handle

Comfortable handle design

Specification

Engine
T35 M12 + Multi 275-4 1", 543RS Brushcutter
Art no: 966 77 99‑01

Cylinder displacement

 40.1 cm³

Output shaft power

1
1.39 kW

Fuel tank volume

 0.75 l

Fuel consumption

 424 g/kWh

Maximum power speed

 9,000 rpm

Idling speed

 3,000 rpm

Torque, max.

 1.96 Nm

Torque, max. at rpm

 6,000 rpm

Spark Plug

 NGK CMR7H
Equipment

Grass blade

 Multi 275-4

Harness

 Standard double harness

Saw blade

 Not included

Trimmer head

 T35 M12

Handle type

 Bullhorn
Control

Connectivity

 Not applicable
Capacity

Cutting width

 46 cm
Transmission

Gear ratio

 1.4

Drive gear angle

 30 °
Dimensions

Tube diameter

 28.05 mm

Weight (excl. cutting equipment)

 7.4 kg

Tube length

 1,483 mm
Lubricant

Lubricant type (Engine)

 Husqvarna 2 stroke or equiv. at 50:1

Lubricant type (bevel gear)

 Mineral grease
Sound and noise

Sound pressure level at operators ear (LpA)

 95 dB(A)

Sound power level, guaranteed (LWA)

 118 dB(A)
Emission

Exhaust emissions (HC average) EU

 41 g/kWh

Exhaust emissions (CO average) EU

 290.1 g/kWh

Exhaust emissions (NOx average) EU

 0.7 g/kWh

Exhaust emissions (CO₂ EU V)

2
1,014 g/kWh
Vibration

Equivalent vibration level (ahv, eq) left handle

 3.5 m/s²

Equivalent vibration level (ahv, eq) right handle

 3 m/s²
