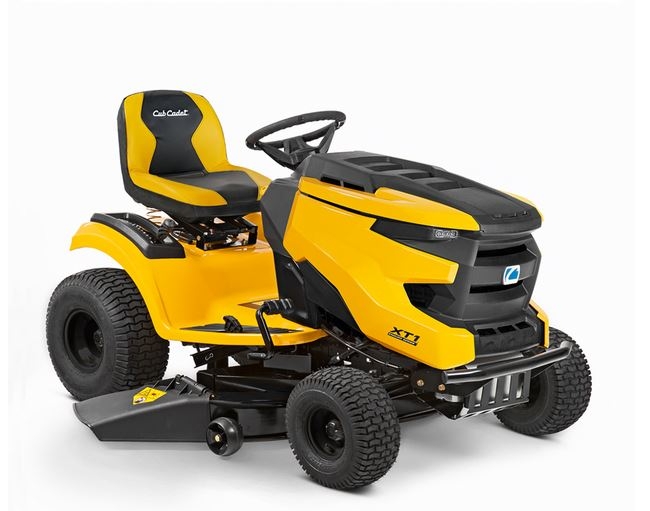

CUB CADET XT1 OS96 Lawn Tractor
XT1 OS96
- Cutting width : 96cm (38'')
- Transmission : Hydrostatic
- Rated power kW/min -1 : 9 / 2,3
- Mowing area in m 2 /h: 6.000
- Grass bag capacity (l) : Optional 200
EAN: 4008423872224
MODEL NO : 13A8A1CF603
XT1 Series 96cm/38
The Cub Cadet XT1 OS96 features a 38” cutting deck with a side discharge and an adjustable cutting height range, from 25mm – 100mm. The powerful and reliable single cylinder Cub Cadet 547cm³ engine is joined to a smooth hydrostatic transmission for simple and efficient mowing. The cutting blades are activated with the pull of a button and the deck height can be easily adjusted through 12 height positions and engaged with the electric PTO system.
Specification
| |
| ENGINE |
XT1 OS96 |
|
| Engine |
Cub Cadet |
| Engine displacement (cm3) |
547 |
| Rated power (kW/min-1) |
9 / 2,3 |
| Cylinders |
Single |
| Fuel tank capacity(l) |
11,4 |
|
| DRIVE SYSTEM |
|
|
| Transmission |
Hydrostatic |
| Air speed (max) |
Infinitely variable (f/r) |
| Control |
Foot pedal control |
| Cruise Control |
Standard |
|
| CUTTING SYSTEM |
|
|
| Mowing area (m2/h) |
6.000 |
| Cutting width |
96cm (38'') |
| Cutting height |
25-100 mm |
| Number of blades |
2 |
| Deck Engagement |
Electric PTO |
| Deck height positions |
12 positions |
| Deck wheels |
4 balls deck wheels |
| Wash nozzle / mulching plug |
– /Standard |
|
| DISCHARGE SYSTEM |
|
|
| Grass bag capacity (l) / accessory no. |
Optional 200/(OEMR190-180A) |
| Bag lever / hardtop |
– / – |
| Bag full indicator / Grass Deflector |
– / Standard |
|
| FRAME |
|
|
| Front axle |
Heavy-duty cast-iron |
| Front bumper |
Single Tube |
| Turning radius (cm) |
TIGHT TURN 38cm |
| Wheels (front/rear) (Zoll) |
15 x 6 Turf Saver / 20 x 8 |
| Wheel bearings |
Sleeve bearings |
| Frame |
Fully robotically-welded frame |
|
| ELECTRIC |
|
|
| Headlights |
LED |
|
| COMFORT |
|
|
| Seat type |
High Back Seat Cub Cadet |
| Seat adjustment |
Lever, angled,10 slide |
| Steering wheel |
Ergo Soft-Grip |
| Tool box / Cub holder |
Standard / Standard |
| 12V Plug |
|
| Mow in reverse |
Standard |
| Battery charger |
– |
|
| DIMENSIONS |
|
|
| Noise values (dB) |
88 / 98 / 100 |
| Vibration value body (K-factor) (m/s2) |
1 / 0,5 |
| Vibration value hand-arm (K-factor) (m/s2) |
5 / 1,5 |
| Dimensions (L / W / H) (cm) |
175 / 124 / 110 |
| Weight net (kg) |
195 |
|
|
|
|
