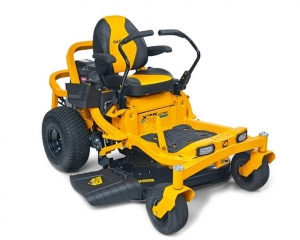

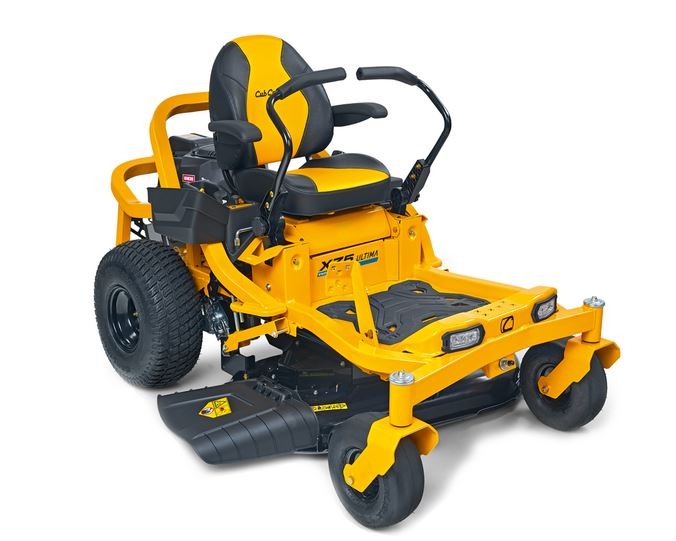

CUB CADET XZ5 L107 Zero Turn Mower
XZ5 L107
- ZERO TURN
- Cutting width : 107
- Transmission : Dual Hydrostatic
- Rated power kW/min -1 : 11,4 / 2,35
- Mowing area in m 2 /h: 10
- Grass bag capacity (l) : Optional 230
EAN: 4008423913187
MODEL NO : 17AAEACS603
XZ5 L107
The latest steering lever lap bar technology combined with the extremely robust construction of heavy-duty components and high-performance Cub Cadet engine makes the XZ5 L107 the ideal machine for large lawn maintenance. The 107cm / 42" cutting deck will easily mow an area of 10,000 m²h. The open frame design allows quick and easy access to the deck and engine for ease of maintenance. With exceptionally low vibration, individually adjustable comfort seats and soft grips - owner/operator comfort is at the forefront of the XZ5 L107.
Specifications
| ENGINE |
XZ5 L107 |
|
| Engine |
Cub Cadet |
| Engine displacement (cm3) |
679 |
| Rated power (kW/min-1) |
11.4 / 2,35 |
| Cylinders |
V-Twin dual cylinder |
| Fuel tank capacity(l) |
13.25 |
| Lubrication |
Full-pressure with spin-on oil filter |
|
| DRIVE SYSTEM |
|
|
| Drive |
Dual Hydrostatic |
| Transmission |
Dual Hydrostatic |
| Speed |
Up to 12 km/h |
| Control |
Control lever |
| Cruise Control |
– |
|
| CUTTING SYSTEM |
|
|
| Mowing area (m2/h) |
10 |
| Cutting width |
107 |
| Cutting height |
25–115 mm |
| Cutting options |
3-in-1 Option |
| Number of blades |
2 |
| Deck Engagement |
Electric PTO |
| Cutting height adjustment |
15 positions |
| Deck wheels |
2 |
| Mulch kit |
Standard |
|
| DISCHARGE SYSTEM |
|
|
| Grass bag capacity (l) |
Optional 230 |
| Grass Deflector |
Standard |
|
| FRAME |
|
|
| Front bumper / Rear bumper |
– / – |
| Turning radius (cm) |
0 |
| Wheels (front/rear) (Zoll) |
11 x 6 / 20 x 8 |
| Wheel bearings |
– |
|
| ELECTRIC |
|
|
| Battery |
12 V / 230 CCA |
| Headlights |
Standard |
| Hourmeter / Serviceminder |
Standard / Standard |
| Safety systems |
– |
|
| COMFORT |
|
|
| Seat type |
High back, with arm rests |
| Seat adjustment |
Quick adjuster lever |
| Steering wheel |
2-way adjustable lap bars with comfort grips |
| Tool box |
Standard |
| Mow in reverse |
Standard |
| Battery charger |
– |
|
| DIMENSIONS |
|
|
| Noise values (dB) |
88 / 98 / 100 |
| Vibration value body (K-factor) (m/s2) |
1 / 0.5 |
| Vibration value hand-arm (K-factor) (m/s2) |
5 / 1.5 |
| Dimensions (L / W / H) (cm) |
203 / 132 / 114 |
| Weight net (kg) |
267 |
|
|
|
