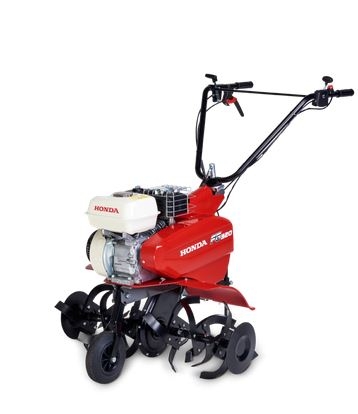

HONDA FG 320 Compact Tiller

FG 320

A light weight tiller that is ideal for domestic use.

Features

• Swing handle
• Side discs
• Gear box

Specifications

• Function

  Max tilling width (mm)	800
  Max tilling depth (mm)	325
  Forward speeds	1
  Reverse speeds	1
  Forward tool rotation speed (rpm)	108 rpm
  Reverse tool rotation speed (rpm)	53rpm

• Dimensions

  Dimension (L x W x H) (mm)	1,500 x 837 x 980
  Dry weight (kg)	53

• ACC

  Rotors/tines supplied	6 x 4 tooth digging tines
  Wheels	Front Transport
  Side discs	Yes

• Engine

  Engine	4-stroke OHV
  Engine model	GP160
  Engine displacement (cc)	163
  Engine net power (kW/rpm)	3.4/3,600
  Engine net torque (Nm/rpm)	10.3 / 2,500
  Fuel tank capacity (Litres)	2.4
  Engine oil capacity (Litres)	0.58
  Starter	Recoil
  Drive clutch	Manual - belt tension
  Transmission	Constant mesh
  Final transmission	Chain
  Sound pressure at operators ears (dB(A))	84
  Guaranteed sound power level (dB(A))	96
  Vibration (m/sec²)	7

• Handle

  Height adjustable handle	Yes
  Swing handle	Yes
