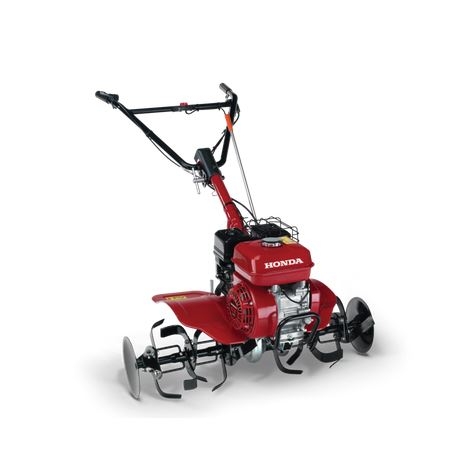

HONDA FJ 500SER Compact Tiller

FJ 500SER

A tough tiller with a gearbox and nine attachment options.

Features

• Swing handle
• Gear box

Specifications

• Function

  Max tilling width (mm)	900
  Max tilling depth (mm)	300
  Forward speeds	1
  Reverse speeds	1
  Forward tool rotation speed (rpm)	113 rpm
  Reverse tool rotation speed (rpm)	28rpm

• Dimensions

  Dimension (L x W x H) (mm)	1,395 x 925 x 990
  Dry weight (kg)	45/57

• ACC

  Rotors/tines supplied	Multiple rotor options
  Side discs	Yes
  De-thatcher / scarifier	Optional
  Ridger	Optional

• Engine

  Engine	4-stroke OHC
  Engine model	GX160
  Engine displacement (cc)	163
  Engine net power (kW/rpm)	3.4/3,600
  Engine net torque (Nm/rpm)	10.3 / 2,500
  Fuel tank capacity (Litres)	2.4
  Engine oil capacity (Litres)	0.58
  Starter	Recoil
  Drive clutch	Manual - belt tension
  Transmission	Constant mesh
  Final transmission	Chain
  Sound pressure at operators ears (dB(A))	81
  Guaranteed sound power level (dB(A))	96
  Vibration (m/sec²)	5.8

• Handle

  Foldable handle	Yes
  Height adjustable handle	Yes
