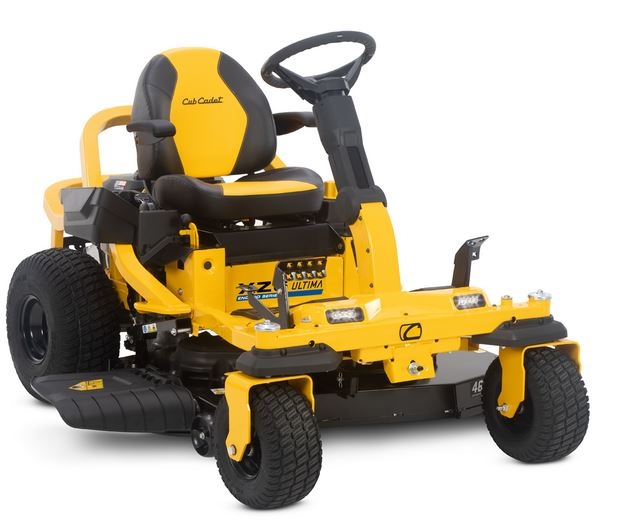

CUB CADET XZ6 S117 Zero Turn Mower

XZ6 S117

  • Cutting width : 117cm / 46"
  • Transmission :
  • Rated power kW/min -1 : 13.8 / 2,450
  • Mowing area in m 2 /h: 10,5
  • Grass bag capacity (l) : Optional 230

    • EAN: 4008423922684


    MODEL NO : 17AIGBYN603



    STEERING THE WAY FORWARD

    The new XZ6 S117 Ultima ENDURO will give unmatched steering capabilities in challenging terrains. You can mow easily in comfort. The industry-leading SynchroSteer® technology for full control of the front wheels, combined with a powerful Kawasaki engine makes the XZ6 S117 the ideal machine for large lawn maintenance. BUILT WITH STRENGTH Our continuous lightweight tubular steel frame is designed for strength and durability. A fabricated mowing deck ensures unsurpassed mowing performance. EXCEPTIONALLY LOW VIBRATION With ergonomic soft grips and rubber floor mats. OPEN FRAME DESIGN Hinged/removable floor pan allowing quick and easy access to the deck and engine for ease of maintenance.

    Specifications


    ENGINE  XZ6 S117
     Engine  Kawasaki
     Engine displacement (cm3)  726
     Rated power (kW/min-1)  13.8 / 2,450
     Cylinders  V-TWIN dual cylinder
     Fuel tank capacity(l)  13.25
     Lubrication  Full-pressure with spin-on oil filter
    DRIVE SYSTEM
     Drive  Dual Hydrostatic
     Transmission
     Speed
     Control  Dual foot pedal control
     Cruise Control  -
    CUTTING SYSTEM
     Mowing area (m2/h)  10,5
     Cutting width  117cm / 46"
     Cutting height  25–114 mm
     Cutting options  3-in-1 Option
     Number of blades  2
     Deck Engagement  Electric PTO
     Cutting height adjustment  15 positions
     Deck wheels  2
     Mulch kit  Standard
    DISCHARGE SYSTEM
     Grass bag capacity (l)  Optional 230
     Grass Deflector  Standard
    FRAME
     Front bumper / Rear bumper  – / –
     Turning radius (cm)  0
     Wheels (front/rear) (Zoll)  13 x 6.5 / 20 x 8
     Wheel bearings  Sleeve bearings
    ELECTRIC
     Battery  12 V / 230 CCA
     Headlights  –
     Hourmeter / Serviceminder  N/A / N/A
     Safety systems  Standard
    COMFORT
     Seat type  High back, with arm rests
     Seat adjustment  Quick adjuster lever
     Steering wheel  Soft-Grip, tilt steering column
     Tool box  Standard
     Mow in reverse  Standard
     Battery charger  (196-967-678)
    DIMENSIONS
     Noise values (dB)  n.a. / n.a. / n.a.
     Vibration value body (K-factor) (m/s2)  1 / 0.5
     Vibration value hand-arm (K-factor) (m/s2)  5 / 1.5
     Dimensions (L / W / H) (cm)  210 / 142 / 116
      Weight net (kg)  285
