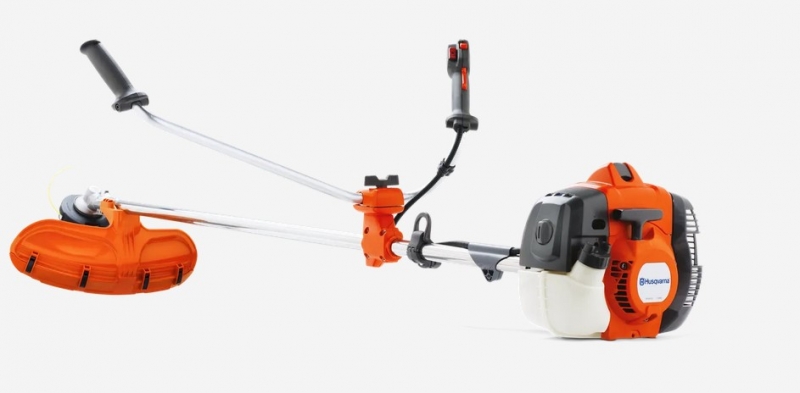

HUSQVARNA 135R Petrol Brushcutter

135R

47cm
Cutting width

1.3kW
Output shaft power1


6.8kg
weight (exc cutting equipment)



  •

    • Powerful brushcutter with grass blade, trimmer head and double harness

    Experience a versatile brushcutter developed for different trimming and clearing tasks in and around the garden. Husqvarna 135R has a powerful X-Torq® engine and offers easy handling with fuel pump and a stop switch that resets to ON after it has been used. Line feeding is done quickly by pushing the trimmer head into the ground. The included double harness facilitates a comfortable working position, and the handle bar can be adjusted for optimal comfort. This brushcutter comes with a grass blade for more demanding tasks.



    Features

    Standard double harness

    Standard harness for lighter brushcutters

    Adjustable handle bar

    Adjustable and ergonomically designed handlebar for best comfort.

    X-Torq® engine

    The X-Torq® engine design increases torque over a wider rpm range providing maximum cutting power.

    High Line Capacity

    Tap 'n' Go trimmer head is easy to use and refill

    Quick Start with Air Purge

    Air purge removes air from carburetor and fuel system for easy starting

    Auto return stop switch

    When the machine is turned off, the stop button automatically returns to start position for trouble free start

    Combi-guard

    The cutting attachment combi-guard can be used with either a grass blade or a trimmer head.

    Grass bevel gear

    Bevel gear designed for optimal cutting performance. It provides high torque and ensures the correct angle so that the cutting equipment is kept parallel to the ground.

    Ergonomic handle

    Comfortable handle design.



    Specification


    Engine
    T35 + Multi 300-3(1"), All ex US 50
    Art no: 966 60 48‑02

    Cylinder displacement

    		 34.6 cm³

    Output shaft power

    1
    1.3 kW

    Fuel tank volume

    		 0.6 l

    Fuel consumption

    		 435 g/kWh

    Maximum power speed

    		 8,400 rpm

    Idling speed

    		 2,900 rpm

    Maximum rpm output shaft

    		 8,220 rpm

    Electrode gap

    		 0.5 mm

    Clutch engagement speed (±120)

    		 3,800 rpm

    Torque, max.

    		 1.8 Nm

    Torque, max. at rpm

    		 6,600 rpm

    Spark Plug

    		 Champion RCJ6Y
    Equipment

    Grass blade

    		 Multi 300-3

    Harness

    		 Standard double harness

    Saw blade

    		 Not included

    Trimmer head

    		 T35 M12

    Handle type

    		 Bullhorn twistable
    Control

    Connectivity

    		 Not applicable
    Capacity

    Cutting width

    		 47 cm
    Transmission

    Gear ratio

    		 1.4

    Drive gear angle

    		 35 °
    Dimensions

    Tube diameter

    		 28 mm

    Weight (excl. cutting equipment)

    		 6.8 kg

    Tube length

    		 1,483 mm
    Lubricant

    Lubricant type (Engine)

    		 Husqvarna 2 stroke or equiv. at 50:1

    Lubricant type (bevel gear)

    		 Mineral grease
    Sound and noise

    Sound pressure level at operators ear

    		 98 dB(A)

    Sound power level, guaranteed (LWA)

    		 113 dB(A)
    Emission

    Exhaust emissions (HC average) EU

    		 40.51 g/kWh

    Exhaust emissions (HC average) CARB

    		 29.31 g/kWh

    Exhaust emissions (CO average) EU

    		 418.31 g/kWh

    Exhaust emissions (CO average) EPA

    		 243.69 g/kWh

    Exhaust emissions (NOx average) EU

    		 0.46 g/kWh

    Exhaust emissions (NOx average) EPA

    		 1.09 g/kWh

    Exhaust emissions (CO₂ EU V)

    2
    862 g/kWh
    Vibration

    Equivalent vibration level (ahv, eq) left handle

    		 2.9 m/s²

    Equivalent vibration level (ahv, eq) right handle

    		 2.5 m/s²
