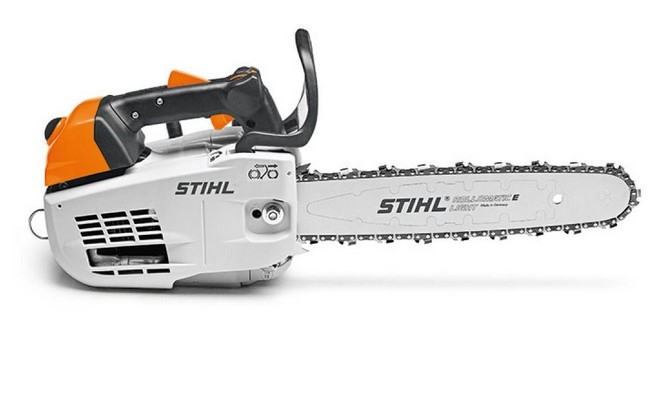

STIHL MS 201 T-CM Petrol Chainsaw
Stihl's most powerful top-handle
Bar length 30 cm / 12" or 35 cm / 14"
MS 201 T-CM
The MS 201 TC-M is STIHL's most powerful top handle chainsaw. Comes as standard with M-Tronic and 2-MIX technology, providing optimum engine performance from the start. The captive nut on the sprocket cover allows for quick changing of the chain.
The lightweight guide bar reduces the overall weight and keeps the saw perfectly balanced. Featuring our innovative STIHL anti-vibration system, the saw is comfortable to use over longer periods. Top handle saws are specially designed for working in an aerial environment and can only be used by trained professionals.
The MS 201 TC-M top handle chainsaw is available in various bar lengths and is ideal for all the tasks an arborist faces on a daily basis.
The 14" version of the MS 201 TC-M is also available with a limited edition guide bar to celebrate the 2021 STIHL TIMBERSPORTS® British Championships.
Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.
Most powerful STIHL petrol tree maintenance saw
For trained arborists
Easy starting and optimised engine performance with STIHL M-Tronic
Reduced total weight thanks to the lightweight guide bar
Features
REDUCED-EMISSION ENGINE TECHNOLOGY
ADVANCED COMBUSTION TECHNOLOGY
VARIABLE-DISPLACEMENT OIL PUMP
EMATIC CHAIN LUBRICATION SYSTEM
STIHL ELASTOSTART
Technical details
Bar length |
30-35 cm |
Bar length |
12-14 in |
Displacement |
35.2 cm3 |
Capacity |
2.15 cu-in |
Power output |
1.8/2.4 kW/bhp |
Rollomatic E, cutting length |
35 cm |
Weight |
3.7 kg 1) |
Tank volume |
0.31 l |
Speed at maximum power |
10500 rpm |
Bumper spike |
Steel spike |
Power-to-weight ratio |
2.1 kg/kW |
Cylinder |
4 channel / chrome |
Filter material |
Non-woven fabric |
Oil pump |
Not adjustable |
Filter |
Standard filter |
Sprocket |
Sprocket profile |
Chain tensioning |
Side-chain tension |
Anti vibration system |
Standard AV-System |
Weight |
4.28 / 4.38 kg 2) |
Handle type |
Top-handle |
Exhaust |
Standard silencer |
Filler cap |
Tool-free filler cap |
Chain pitch |
3/8" P |
Carburettor |
Compensator / carburettor heating / flushing template / STIHL M-Tronic |
Sound pressure level |
100 dB(A) 3) |
EPA Certified fuel consumption |
0.242 glh |
EPA Certified fuel consumption |
0.917 l/h |
Oil tank volume |
220 cm3 |
Sound power level |
113 dB(A) 3) |
Vibration values left/right |
3.5/3.1 m/s2 4) |
STIHL Oilomatic saw chain pitch/type |
3/8" P |
CO² |
728 g/kWh |
