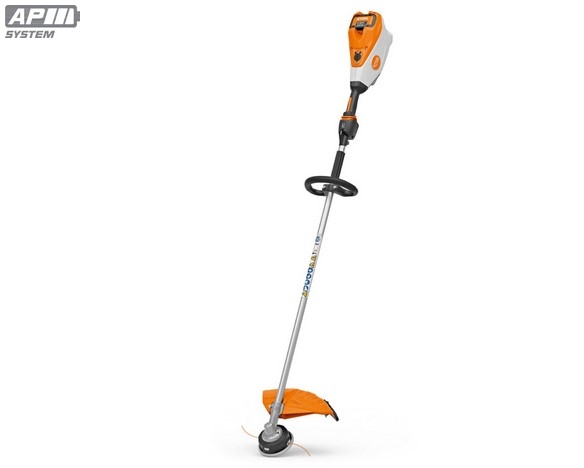

STIHL FSA 135 R Cordless Brushcutter - AP System

Powerful with loop handle and AutoCut C 26-2 mowing head
Tool only
FSA 135 R

  • High-powered battery brushcutter for professionals in garden and landscape maintenance
  • Individual tool without battery and without charger
  • Durable air filter with metal mesh for optimum engine cooling
  • Prepared for use with a Smart Connector 2 A
  • Can be used with different cutting tools depending on requirements
  • IPX4 rated for working in all weather

    •

    Please note that this model is only available as a tool only without battery and charger.

    The FSA 135 R is a powerful professional battery-powered brushcutter from STIHL. Part of the AP System and designed for professional users working landscaping and grounds maintenance. Packed with power and capable of taking on the toughest mowing, clearing and scrub cutting jobs with ease. As the tool is battery-powered, it’s especially suited for work in noise sensitive areas such as at hospitals, schools and housing estates.

    The FSA 135 R is fitted with loop handle that can be set to your preferred height. The tool is fitted with a powerful EC motor and speed-adjustment on the control handle, which can be set at 3 different speed levels depending on the type of work you are doing. Plus, there is an energy saving mode on the handle too for when your battery is low on energy.

    The air filter on the housing ensures that the engine is kept cool during work, improving the service life of the brushcutter. It’s easy to remove and clean too. Plus, the FSA 135 R is IPX4 rated – meaning it can be used in all weather conditions.

    The FSA 135 R is supplied with a single shoulder harness and the AutoCut C 262 blade as standard but can also be fitted with other STIHL cutting tools such as the GrassCut, TrimCut, DuroCut, PolyCut, BrushCut and WoodCut cutting tools. It also has a mounting point for the STIHL SmartConnector 2 A on the power tool housing.

    Don’t forget to check your work area for wildlife before starting to use your tool. In particular, you should check for nesting birds before trimming hedges, as well as checking for other small animals such as hedgehogs before trimming long grass.

    STIHL professional tip - to get the most from your mowing line, we recommend popping it in a bucket of water for 12-24 hours before using it to make it more flexible and less likely to break.







    Features

    EC motor

    LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.

    Ergonomic control with speed adjuster

    The speed can be controlled in three stages using the ergonomic control handle, which has a built-in LED display. This ensures energy-efficient work and long running times.

    Metal mesh air filter

    OPTIMAL ENGINE COOLING. The air filter with fine metal mesh cleans the air and in this way ensures optimum engine cooling. As it is easy to clean, it also offers a long service life.

    Connectivity (Ready)

    COMPATIBLE WITH THE SMART CONNECTOR 2A. You can mount a Smart Connector 2 A in the housing of the power tool at the dedicated position. Once installed, this connects to the control unit and transmits valuable power tool data to your smartphone, tablet or the STIHL connected Box that is within range. You can use the STIHL connected App and the STIHL connected Portal to view the STIHL connected gathered data and benefit from additional functions.

    Loop handle with bar

    FOR SAFE WORK IN SMALL SPACES. The loop handle ensures good manoeuvrability of your tool, even in confined spaces. The bar protects you by ensuring your feet and legs cannot come too close to blades or mowing heads during work.




    Technical details

    Rated voltage 36 V
    Power 1 kW 1)
    Battery system AP
    Recommended battery AP 300 S, AR 2000
    Device weight without battery 4.3 kg 2)
    Cutting circle diameter 420 mm
    IPX Rating IPX4
    Min. battery working time AP 200 with line mowing head 17 min 3)
    Max. battery working time AP 200 with line mowing head 28 min 3)
    Min. battery working time AP 200 S with line mowing head 17 min 3)
    Max. battery working time AP 200 S with line mowing head 28 min 3)
    Min. battery working time AP 300 with line mowing head 19 min 3)
    Max. battery working time AP 300 with line mowing head 36 min 3)
    Min. battery working time AP 300 S with line mowing head 25 min 3)
    Max. battery working time AP 300 S with line mowing head 45 min 3)
    Min. battery working time AP 500 S with line mowing head 30 min 3)
    Max. battery working time AP 500 S with line mowing head 54 min 3)
    Min. battery working time AR 2000 L with line mowing head 96 min 3)
    Max. battery working time AR 2000 L with line mowing head 170 min 3)
    Min. battery working time AR 3000 L with line mowing head 138 min 3)
    Max. battery working time AR 3000 L with line mowing head 234 min 3)
    Device length without cutting tool 184 cm
    Sound pressure level 80 dB(A) 4)
    Sound power level 92 dB(A) 4)
    Vibration value on the left in right-handed operation 2.9 m/s² 5)
    Vibration value on the left in right-handed operation 3.7 m/s² 5)
    Vibration value on the right in right-handed operation 1.8 m/s² 5)
    Vibration value on the right in right-handed operation 2.9 m/s² 5)


    1)Mechanical power as comparative value to petrol appliance2)without cutting tool and protection3)The indicated working times per battery charge are indicative and may vary depending on the application and operating mode4)K-value according to Directive 2006/42/EC = 2.0 dB(A)5)K-value according to RL 2006/42/EG = 2 m/s²
