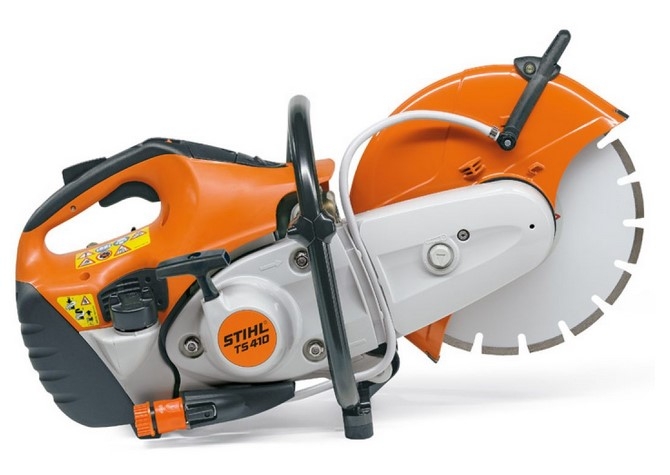

STIHL TS 410 Petrol Cut-off Machine

Compact and robust 3.2kW (300mm / 12" cutting wheel)
TS 410

  • Lightweight cut-off machine for professional users
  • Reliably cuts concrete, stone, asphalt, structural steel, and pipes
  • Loop handle for enhanced comfort in all cutting positions
  • Precise cut guidance with the STIHL anti-vibration system
  • Low-maintenance filter system thanks to cyclone routing
  • For 12" / 300 mm cutting wheels

    •

    Long-life filter system with cyclone pre-separation makes on-site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics.
    For use with 300mm cutting wheel. ElastoStart, primer pump and decompression valve.
    Bayonet filler cap for tool free opening. Can be hand-held or used with the FW 20 cart.
    Supplied with abrasive cutting wheel.




    Features

    Manual fuel pump

    FOR FEWER STARTING STROKES. The manual fuel pump reduces the number of strokes required to start the tool, making the start-up process quicker and easier This is particularly helpful after longer breaks in operation. To use it, actuate the pump several times before starting. This will ensure that there is enough petrol in the carburettor when starting.

    Manual decompression

    EFFORTLESS START-UP. The decompression valve makes it easier to start your tool. When starting, you can allow some of the compressed mixture to escape from the cylinder by opening the valve. This protects the start-up system and reduces the amount of force required on the starter cord.

    Water connection

    FOR DUST BINDING AND COOLING. When working with your tool, a permanent water supply is provided for flushing the cutting wheel. It is used to bind dust and cool the cut. With the water connection directly on the tool, this rinsing is easy and permanently assured.

    Semi-automatic drive belt tensioning

    Light, consistent re-tensioning increases the service life of the belts and shaft bearings.

    Pre-separation air filtration system

    STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems. Air drawn in is swirled. The larger, heavier particles are ejected. The pre-cleaned air is routed to the air filter via the pre-separator duct.

    Ergonomic handle

    FOR PRECISE GUIDANCE. With the ergonomic handle, you can keep a firm grip on your tool and carry out cuts precisely, even when dealing with very hard stone. The curved handle offers you an optimised grip position and the highest level of comfort when working.

    STIHL 2-MIX engine

    HIGHLY POWER-EFFICIENT. With the STIHL 2-MIX engine, you can reduce exhaust emissions and fuel consumption, and therefore operating costs. This 2-stroke engine is low-maintenance and uses fuel efficiently even at high power levels. Use a mixture of petrol and engine oil as fuel. The STIHL 2-MIX engine complies with the strict EU Stage V emissions directive.

    STIHL anti-vibration system

    FOR MORE PLEASANT WORK. Vibrations can occur when you put your tools through their paces, and these are particularly noticeable in the grip area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and therefore to your body. The result is that your tool is more comfortable to hold and your work is much less tiring.


    Technical details

    Displacement 66.7 cm³
    Power 3.20 kW
    Engine power 4.40 HP
    CO2 747 g/kWh
    Device weight without refuelling 9.6 kg 1)
    Cutting disc diameter 300 mm
    Max. cutting depth 100 mm
    Device length with cutting disc 67.5 cm
    Sound pressure level 98 dB(A) 2)
    Sound power level 109 dB(A) 3)
    K-value (sound pressure level) 2 dB(A) 4)
    K-value (sound power level) 2 dB(A) 4)
    Vibration level left 3.9 m/s²
    Vibration level right 3.9 m/s²

    1)without cutting disc2)Measurement according to ISO 194323)Measurement with cutting discs in the cut according to EN 60745-2-224)K value according to Directive 2006/42/EC
