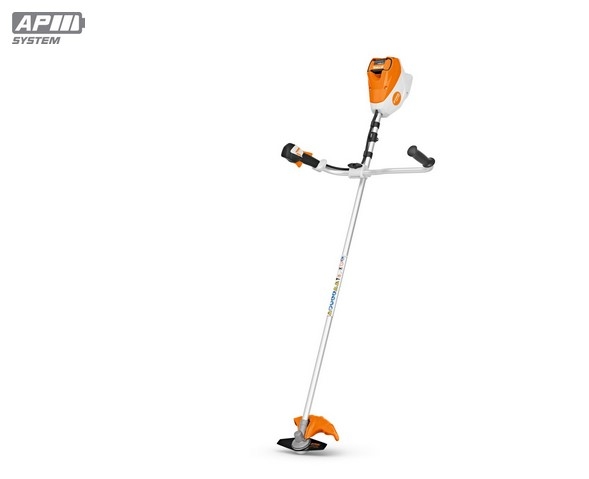

STIHL FSA 120 Cordless Brushcutter - AP System
Excellent mowing performance, ideal for landscaping
Tool only
FSA 120
The STIHL FSA 120 is a battery-powered brushcutter designed for tackling the toughest gardening and landscaping jobs you may face. The FSA 120 is battery powered meaning it has low noise emission – making it ideal for work in noise-sensitive areas such as schools, hospitals and quiet neighbourhoods.
Fitted with a bike handle for comfortable working when cutting tall grass and weeds. The folding clamp makes it quick and easy to adjust the bike handle to the ergonomic position that suits you. The FSA 120 has a powerful brushless EC motor and speed-adjustment on the control handle, which can be set at 2 different speed settings. There is an ECO mode (level 1), for simple tasks such as trimming lawn edges, which results in lower energy consumption for extended battery life. And there is full speed mode (level 2), for mowing thicker grass, which will use more of the battery energy.
The FSA 120 is supplied with a basic harness and the GrassCut 230-2 blade as standard, but can also be fitted with other STIHL cutting tools, such as the AutoCut, TrimCut, DuroCut, PolyCut cutting tools
Features
Bike handle
When used in conjunction with a harness, the bike handle enables a smooth mowing action. The bike handle allows the machine to be easily guided, making it ideal for working on large areas and thus reducing fatigue.
Softgrip handle with ErgoLever
Thanks to the soft grip handle, this tool fits comfortably in your hand. Plus, the grip helps to use the tool in wet weather.
Tool-free handle adjustment
SET THE BIKE HANDLE POSITION. You can individually adjust the ergonomic bike handle (mowing handle) using the central clamping device. Thanks to the tool-free handle adjustment, you do not need any tools for this. The bike handle can be rotated 90 degrees for transport and space-saving storage.
EC motor
LOW-MAINTENANCE AND EFFICIENT. Thanks to its compact design, low weight and high efficiency, the EC motor enables you to work in an energy efficient manner. This engine also has a long service life.
Shoulder strap/carrying system
Using a STIHL shoulder strap or carrying harness with soft padding makes work more comfortable, particularly during lengthy jobs.
Tool monitoring with the Smart System
INTEGRATION INTO STIHL CONNECTED. The tool is compatible with the Smart Connector, meaning it can be integrated into the STIHL connected system. Once you have attached a Smart Connector to the tool, after one-time commissioning it will record the tool’s operating hours and transmit them to the STIHL connected App via Bluetooth. In addition to displaying the operational time, the app also provides an overview of all necessary maintenance, ensuring that you do not overlook important upkeep and that your tool is always in a ready-to-use condition.
Eyelet for shoulder strap
Special eyelet for use with a shoulder strap.
Power levels
PERFORMANCE SUITABLE FOR THE TASK. You can set 2 different power levels on the handle. Level 1, is Eco mode, which has reduced power to extend the battery life. Level 2 allows you to use the full power of the tool.
Constant power
When using other brands of battery tools, the performance can sometimes decrease during work as the battery discharges. This isn't the case with STIHL battery-powered tools. Thanks to the intelligent electronics, your tool will work with consistently high power across the entire battery charge, until there is no energy left in the battery.
IPX4 certified
SPLASHWATER PROTECTION. The AP 200 S is IPX4 certified thanks to the encapsulated electronics and sealing of each individual cell. It means that the battery is protected against splashwater from all sides and can be used in rainy conditions.
Technical details
| Rated voltage | 36 V |
| Power | 0.8 kW 1) |
| Battery system | AP |
| Recommended battery | AP 300 S |
| Device weight without battery | 4.5 kg 2) |
| Cutting circle diameter | 380 mm |
| Standard cutting attachment | GrassCut 230-2 |
| IPX Rating | IPX4 |
| Min. battery working time AP 100 with metal blade | 20 min 3) |
| Max. battery working time AP 100 with metal blade | 30 min 3) |
| Min. battery working time AP 200 with metal blade | 40 min 3) |
| Max. battery working time AP 200 with metal blade | 60 min 3) |
| Min. battery working time AP 200 S with metal blade | 40 min 3) |
| Max. battery working time AP 200 S with metal blade | 60 min 3) |
| Min. battery working time AP 300 with metal blade | 50 min 3) |
| Max. battery working time AP 300 with metal blade | 80 min 3) |
| Min. battery working time AP 300 S with metal blade | 60 min 3) |
| Max. battery working time AP 300 S with metal blade | 110 min 3) |
| Min. battery working time AP 500 S with metal blade | 70 min 3) |
| Max. battery working time AP 500 S with metal blade | 130 min 3) |
| Min. battery working time AR 2000 L with metal blade | 210 min 3) |
| Max. battery working time AR 2000 L with metal blade | 400 min 3) |
| Min. battery working time AR 3000 L with metal blade | 280 min 3) |
| Max. battery working time AR 3000 L with metal blade | 490 min 3) |
| Device length without cutting tool | 178 cm |
| Sound pressure level | 81 dB(A) 4) |
| Sound power level | 94 dB(A) 4) |
| Vibration level, left | 2.6 m/s² 5) |
| Vibration level, left | 1.8 m/s² 5) |
| Vibration level, right | 1.3 m/s² 5) |
| Vibration level, right | 2.3 m/s² 5) |
