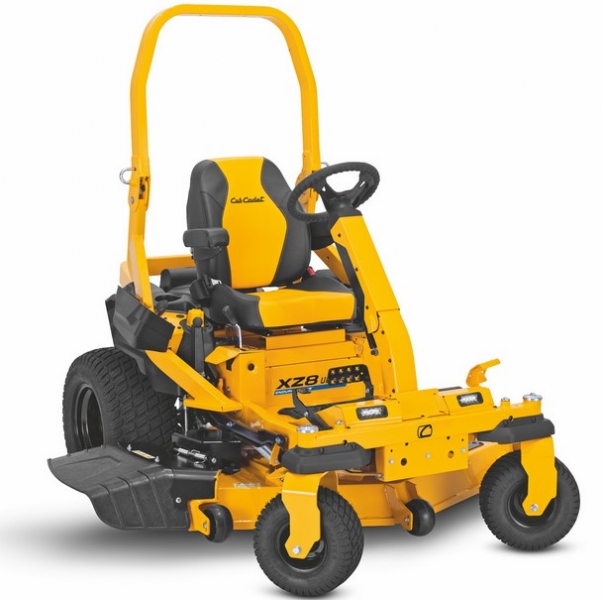

CUB CADET XZ8 S137i - ULTIMA Zero Turn Mower

XZ8 S137I

  • Cutting width : 137
  • Transmission :
  • Rated power kW/min -1 : 13,8 / 2500
  • Mowing area in m 2 /h: 13.000
  • Grass bag capacity (l) : optional 380 l



EAN: 4008423924466


MODEL NO : 47ATCAB7603



Specification

ENGINE  XZ8 S137i - ULTIMA
 Engine  KOHLER EFI V-TWIN
 Engine displacement (cm3)  747
 Rated power (kW/min-1)  13,8 / 2500
 Cylinders  2
 Fuel tank capacity(l)  20,8
 Lubrication  Full-pressure with spin-on oil filter
DRIVE SYSTEM
 Drive  Dual Hydrostatic (Hydrogear ZT3200)
 Transmission
 Speed
 Control  Dual foot pedal control
 Cruise Control  –
CUTTING SYSTEM
 Mowing area (m2/h)  13.000
 Cutting width  137
 Cutting height  25–114 mm
 Cutting options  3-in-1 option
 Number of blades  3
 Deck Engagement  Electric PTO
 Cutting height adjustment  16 positions
 Deck wheels  2
 Mulch kit  Standard
DISCHARGE SYSTEM
 Grass bag capacity (l)  optional 380 l
 Grass Deflector  Standard
FRAME
 Front bumper / Rear bumper  – / Standard
 Turning radius (cm)  0
 Wheels (front/rear) (Zoll)  13 x 6,5 / 23 x 12
 Wheel bearings  –
ELECTRIC
 Battery  210cca AGM
 Headlights  LED
 Hourmeter / Serviceminder  Standard / Standard
 Safety systems  Standard
COMFORT
 Seat type  High back with armrests
 Seat adjustment  Quick adjuster lever
 Steering wheel  Soft-Grip steering wheel, tilt steering column
 Tool box  Standard
 Mow in reverse  Standard
 Battery charger
DIMENSIONS
 Noise values (dB)  89,9 / 104,3 / 105
 Vibration value body (K-factor) (m/s2)  0,4 / 0,2
 Vibration value hand-arm (K-factor) (m/s2)  2,8 / 1,4
 Dimensions (L / W / H) (cm)  n.a. / n.a. / n.a.
  Weight net (kg)  449
