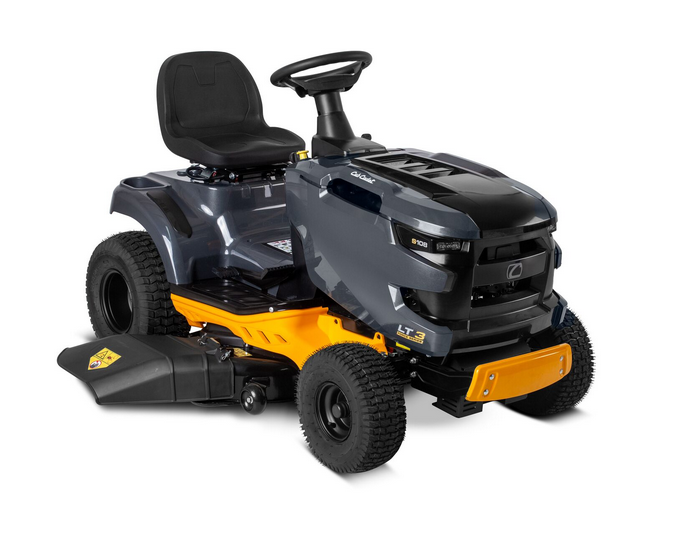

CUB CADET LT 3 Force Series Lawn Tractors

LT3 S108

The LT3 series of lawn tractors deliver perfect mowing performance, exceptional cutting and collection with incredibly responsive handling. They feature RevTEKTM Technology allowing you to cut while in reverse. The hydrostatic transmission is infinitely variable and there is a choice of manual hand lever control or dual direction foot pedal control. All LT3 lawn tractors are fitted with a powerful Cub Cadet engine.

Features

REVTEK™ TECHNOLOGY

RevTEK™- Reserve mowing technology. An integrated system that allows you to cut while in reverse. Available with LT3 PR105 & LT3 PS107.



COMFORTABLE SEAT

Comfortable seat with high backrest to make mowing easier.



HYDROSTATIC TRANSMISSION

Impressive with its modern technology and featuring a self-lubricating pump for minimal maintenance and maximum durability.

The hydrostatic transmission also stands out for its velocity control as well as continual forward and reverse speeds. No clutching or shifting is required which means you can drive more gently and with greater accuracy.

The LT series tractors are controlled by either a hand lever (side discharge tractors) or a foot pedal (rear discharge tractors).

LT3 S108

  • Cutting width : 108
  • Transmission : Hydrostatic
  • Rated power kW/min -1 : 11,7 / 2500
  • Mowing area in m 2 /h: 5500
  • Grass bag capacity (l) : –



EAN: 4008423936582

MODEL NO : 13AJR1CW603



ENGINE LT3 S108
 Engine  Cub Cadet V-TWIN
 Engine displacement (cm3)  679
 Rated power (kW/min-1)  11,7 / 2500
 Cylinders  V-TWIN dual cylinder
 Fuel tank capacity(l)  7,6
DRIVE SYSTEM
 Transmission  Hydrostatic
 Air speed (max)  stepless (f/r)
 Control  Foot pedal control
 Cruise Control  –
CUTTING SYSTEM
 Mowing area (m2/h)  5500
 Cutting width  108
 Cutting height  30–90
 Number of blades  2
 Deck Engagement  Electromagnetic
 Deck height positions  7 positions
 Deck wheels  Standard
 Wash nozzle / mulching plug  Standard/optional
DISCHARGE SYSTEM
 Grass bag capacity (l) / accessory no.  –/–
 Bag lever / hardtop  – / –
 Bag full indicator / Grass Deflector  – / n.a.
FRAME
 Front axle  Steel
 Front bumper  Standard
 Turning radius (cm)  46
 Wheels (front/rear) (Zoll)  15 x 6 - Turf Saver / 18,5 x 8 - Turf Saver
 Wheel bearings  Sleeve bearings
 Frame  Easy entry frame
ELECTRIC
 Headlights  LED
COMFORT
 Seat type  Standard, high back rest (13'')
 Seat adjustment  Lever
 Steering wheel  Standard
 Tool box / Cub holder  Standard / Standard
 12V Plug
 Mow in reverse  Standard
 Battery charger  optional (5033-BC-0001)
DIMENSIONS
 Noise values (dB)  88,3 / 98,5 / 100
 Vibration value body (K-factor) (m/s2)  1,5 / 1,5
 Vibration value hand-arm (K-factor) (m/s2)  2,2 / 1,5
 Dimensions (L / W / H) (cm)  174 / 139 / 111
 Weight net (kg)  189
